Nuer Drop of Hope - Ohorizons' BioSand Wooden Mold

Embedded Microsoft Office presentation, powered by Office.

Optional: Download BioSand Filter PowerPoint - 'Wooden Mold'

BioSand Filter Wooden Mold

OHorizons recommends this multi-barrier approach even beyond this initial 30-day period. Although the filter is functioning optimally after the first month, a variety of factors could change its effectiveness over time such as improper use by the user or changes in water source contamination levels. Using a multi-barrier approach throughout the life of the filter ensures users are drinking the safest water possible at all times.

DOWNLOAD Ohorizon's Wood Mold Introduction

DOWNLOAD Ohorizon's Wood Mold for Concrete BioSand Filters Instruction Manual

DOWNLOAD Ohorizon's Wood Mold Appendix

What is the wooden mold used for?

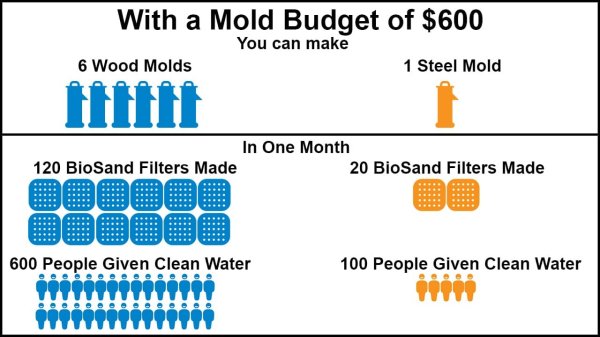

The wooden mold is used to make concrete BioSand Filters. The materials needed to build the mold are easily found in local stores even in communities of need. This results in a low project start-up cost and gives the opportunity to have several molds available to manufacture filters at the same time. With more molds, people can produce and get filters much faster.


Plywood is PERMEABLE and is destroyed by the ALKALINITY of concrete. Even common oil based paint and primer will double the life of plywood, if you mix that paint with 2 part epoxy form life will be over 120 casts.

Before You Start Safety First!

1. Keep safety glasses on, especially while using the saw and dry cement.

2. Use masks when dealing with the dry cement and saw dust.

3. No loose clothing (e.g. scarves, draw strings).

4. Everyone should know where the First Aid Kit is located.

5. Everyone knows what number to call in case of emergency.

6. Use gloves when handling concrete and/or cement.

7. Everyone should wear closed toe shoes (tennis shoes or boots, not sandals).

BioSand Wooden Mold

Step 1:

Build and assemble the wooden mold

Step 2:

Mix and pour the concrete into the mold, let stand overnight

Step 3:

Unmold the BSF and prepare the filter sand and gravel

Step 4:

Install filter sand and gravel and run BSF





STEP BY STEP GUIDE TO USE THE OHORIZON WOODEN MOLD

View on YouTube Ohorizons' Wood Mold Video

STEP #1:

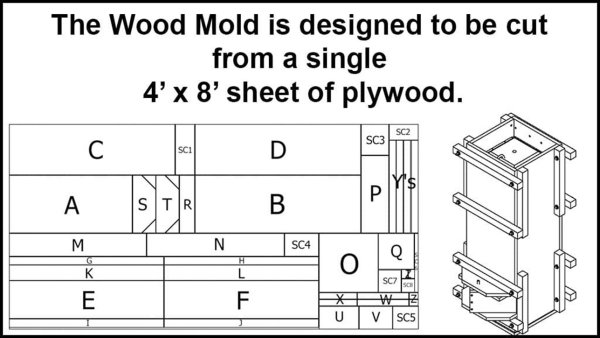

Cut the 8' X 4' plywood, using Ohorizon's Instruction Manual

STEP #2:

Install Hardware:

Follow Ohorizon's Wood Mold Instruction Manual to combine the pieces of plywood into the different mold parts.

STEP #3:

Assemble the mold:

To prepare for pouring concrete. Apply oil to the mold to increase durability and prevent the concrete from sticking.Linseed oil or cooking oil can be used as a release agent. Another alternative is 30% candles melted into diesel, applied with a rag.

STEP #4:

Mix and Pour Concrete:

STEP #5:

Fill the mold with concrete: Leave to stand overnight.

STEP #6:

Pull the centre pieces out from the mold, leaving a hollow centre.

STEP #7:

Loosen the bolts to remove the outer pieces:

STEP #8:

Remove filter from mold:

STEP #9:

Fill this new filter body with water and allow it to cure for a further 7 days before installing.

Where can I find additional Information?

The OHorizons Wood Mold Construction Manual contains technical information on creating the Wood Mold, using the Wood Mold, and proper filter installation. For additional assistance on problem solving with the Wood Mold, creating diffusers, sourcing sand and gravel, and more please see the OHorizons Wood Mold Appendix, which can also be found on our website. For more information on educating the user, follow-up procedures, and more please contact OHorizons. We have many additional materials that may be helpful in planning and implementing your project. If we don't have the specific resource you need, we can help you locate additional resources elsewhere.

View on YouTube Ohorizons' Wood Mold Video

You can always contact OHorizons via the Contact form on our website (www.ohorizons.org)

Or you can email us directly at info@ohorizons.org

View on YouTube Wood Mold for Concrete BioSand Filters

Stage F: Make the Diffuser

The purpose of the diffuser is to protect the top of the sand from moving around when you pour the water into the filter. This protects the biolayer. The diffuser also makes sure the water drips onto the sand evenly across the top of the sand. This way all of the sand can be used to treat the water. You can build a diffuser out of many materials. Use a material that you can find locally and that someone local has the skills to work with.

Example Materials:

· Sheet metal (galvanized)

· Plastic

· Concrete

· Acrylic sheet

Diffuser boxes work better than diffuser plates. Diffuser boxes have to be made out of galvanized sheet metal. CAWST recommends making diffuser boxes.

Design:

  • Holes should be 3 mm (1/8") in diameter. You can use a 3 mm (1/8") nail to make the holes. Larger holes will cause disturbance of the surface of the sand. Smaller holes will restrict the flow through the filter, possibly causing the flow rate to drop
  • Holes should be spaced out by 2.5 cm (1") in a grid pattern.
  • The diffuser should fit tightly inside the filter, and there should not be any gaps between the diffuser and the concrete walls. A gap allows water to travel along the walls of the filter, rather than being distributed evenly through the holes of the diffuser plate. A tight fit also keeps the diffuser from floating.
  • The diffuser should be easy to remove.

Be careful working with sharp edges, especially when using sheet metal. Use gloves.

Stage G: Make the Lid

The purpose of the lid is to stop anything from getting inside the filter. You can build a lid out of many materials. Use a material that you can find locally and that someone local has the skills to work with.

Example Materials:

· Sheet metal (galvanized)

· Simple wood

· Carved wood

· Ceramic tiles

· Concrete

Design:

· The lid should cover the entire top of the filter.

· It should not be easily knocked off the filter.

· It should be easy to take off and put on again.

· Some lids have handles, some do not. If there is no handle, people can store items on top of the filter lid.

· On wooden lids, the handle should be attached to the lid with at least 2 nails going into the lid at different directions, so that the handle does not pull out when you lift the lid.

· Wood lids should be painted with an oil-based paint to stop mould from growing inside the lid.

HANDOUT:

Download Handout #10 - BioSand Wooden Mold English Educational Handout
